Web Console

Each installation includes a web-based console, which is designed to help you debug and test JWT validation, token claims, connections, channel subscriptions, and messages. The web console uses hotsock-js under-the-hood.

The URL for your installation's web console can be found in your CloudFormation stack's WebConsoleHttpUrl output.

Open the URL, and you'll see your web console.

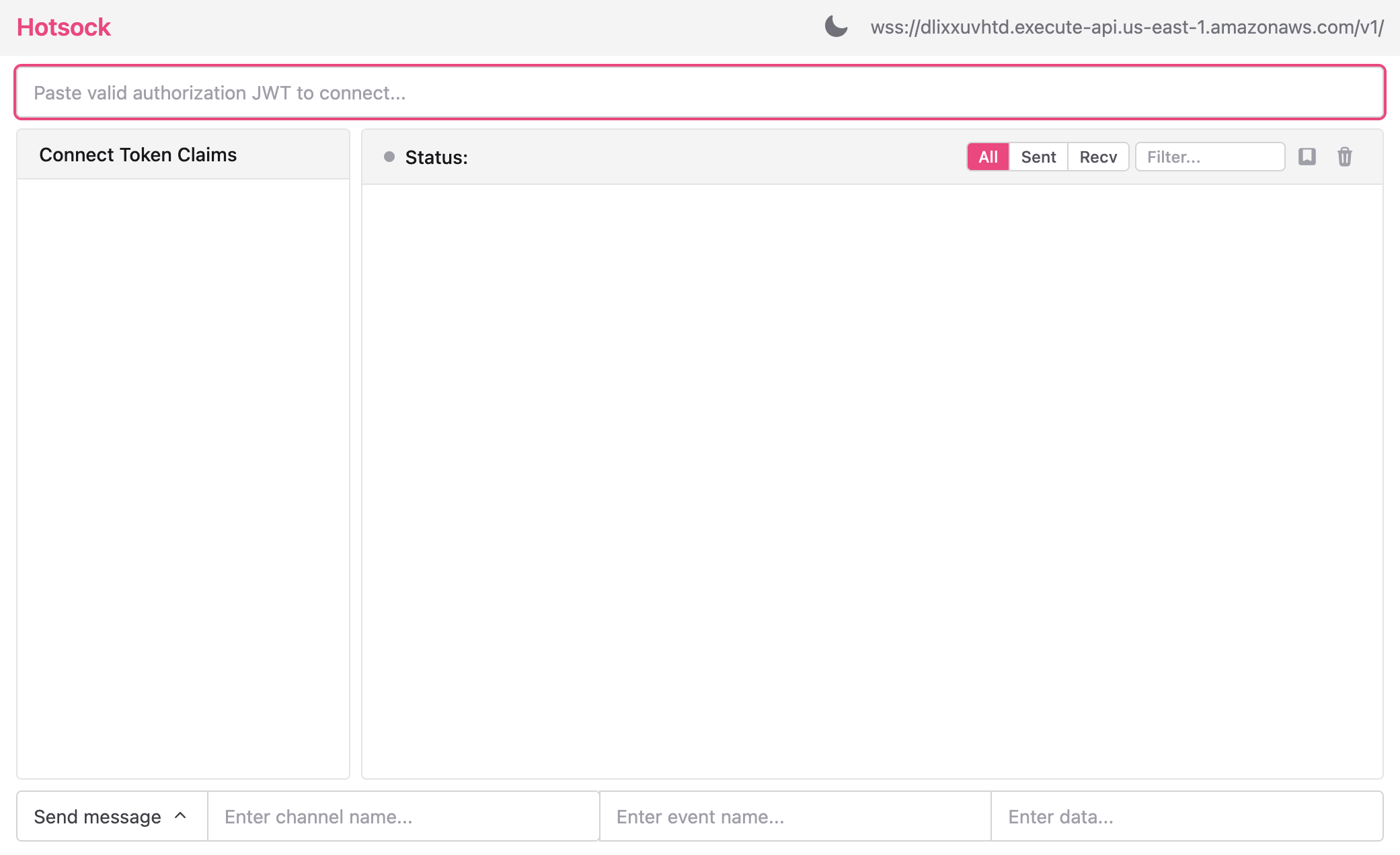

Open web console

Connect to the WebSocket​

Using the JWT issuer configured for your installation, issue yourself a valid token with the connect scope.

Paste the token in the input on top. The token is parsed so you can see what claims were included. The console will automatically attempt to establish a connection using that token. If all goes well, you're connected.

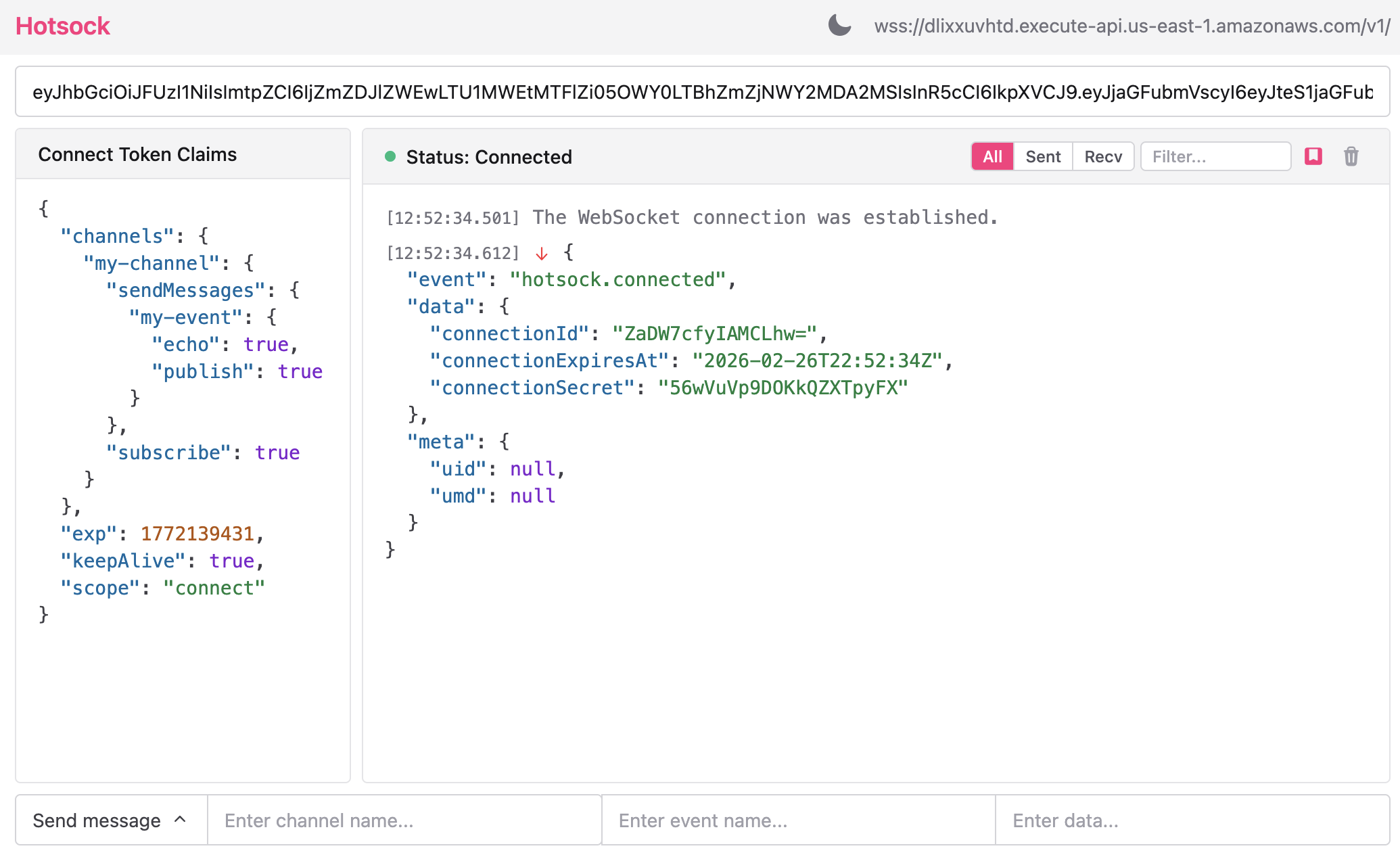

Web console connected

Subscribe​

The permissions in the example token allow subscribing to my-channel.

To subscribe to the channel, click the dropdown menu at the bottom, choose "Subscribe to channel", enter "my-channel" in the channel name input, and hit Enter/Return on your keyboard.

You'll see an outgoing WebSocket message that requests the subscription followed by an incoming WebSocket message that confirms this connection is successfully subscribed.

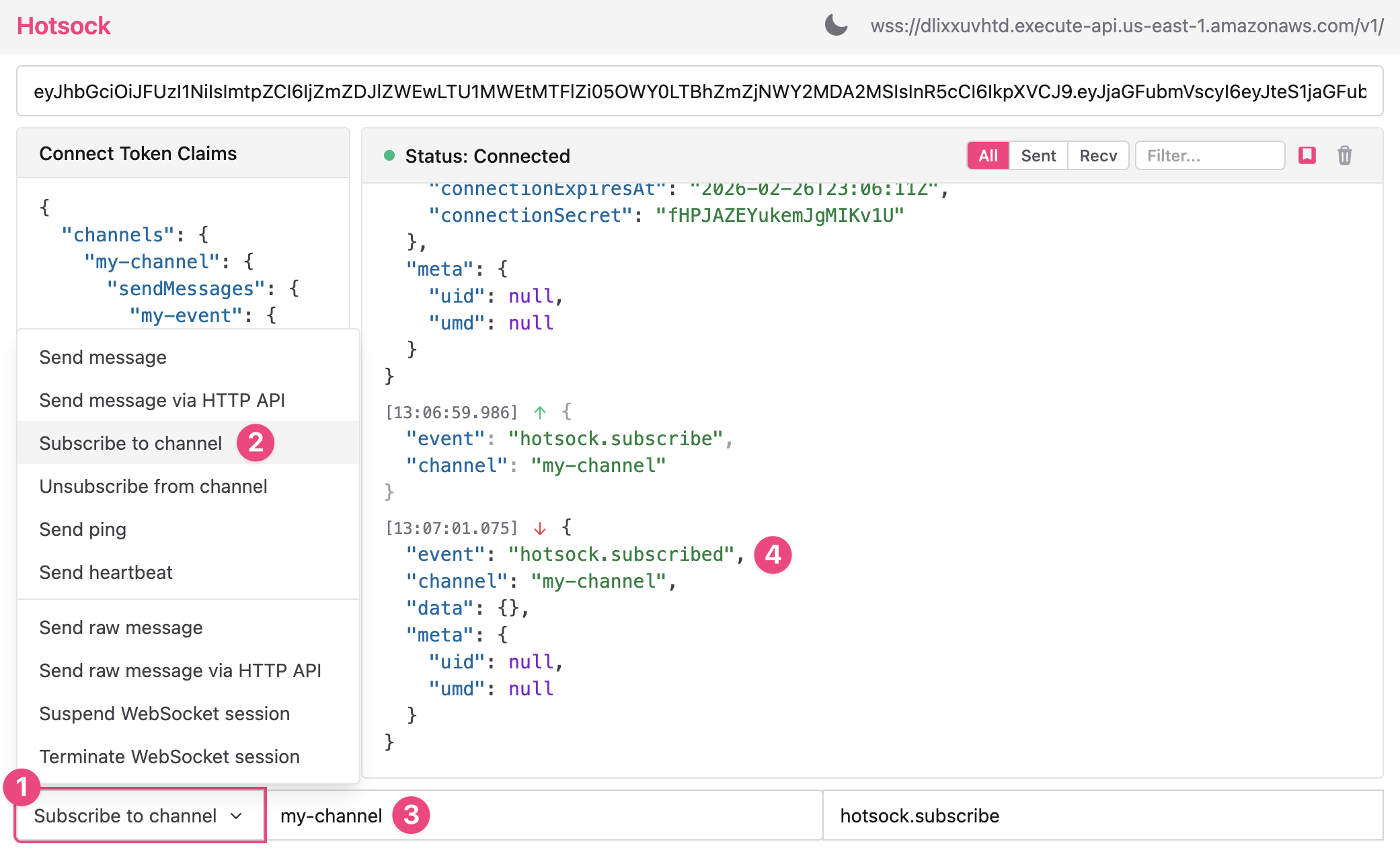

Web console subscribe

You can publish messages from your backend to the my-channel channel and you'll see a copy of those messages as they're received in real-time.

Send message​

The permissions in the example token allow publishing messages in my-channel that have the event my-event.

To send a message, click the dropdown menu at the bottom, choose "Send message", enter "my-channel" in the channel name input, enter "my-event" in the event name input, and any value in the data input. Then hit Enter/Return on your keyboard.

You'll see an outgoing WebSocket message that sends the message on the channel. Any other channel subscribers will receive this message, and because the claim has echo enabled for this event, the sending connection also receives a copy of the message.

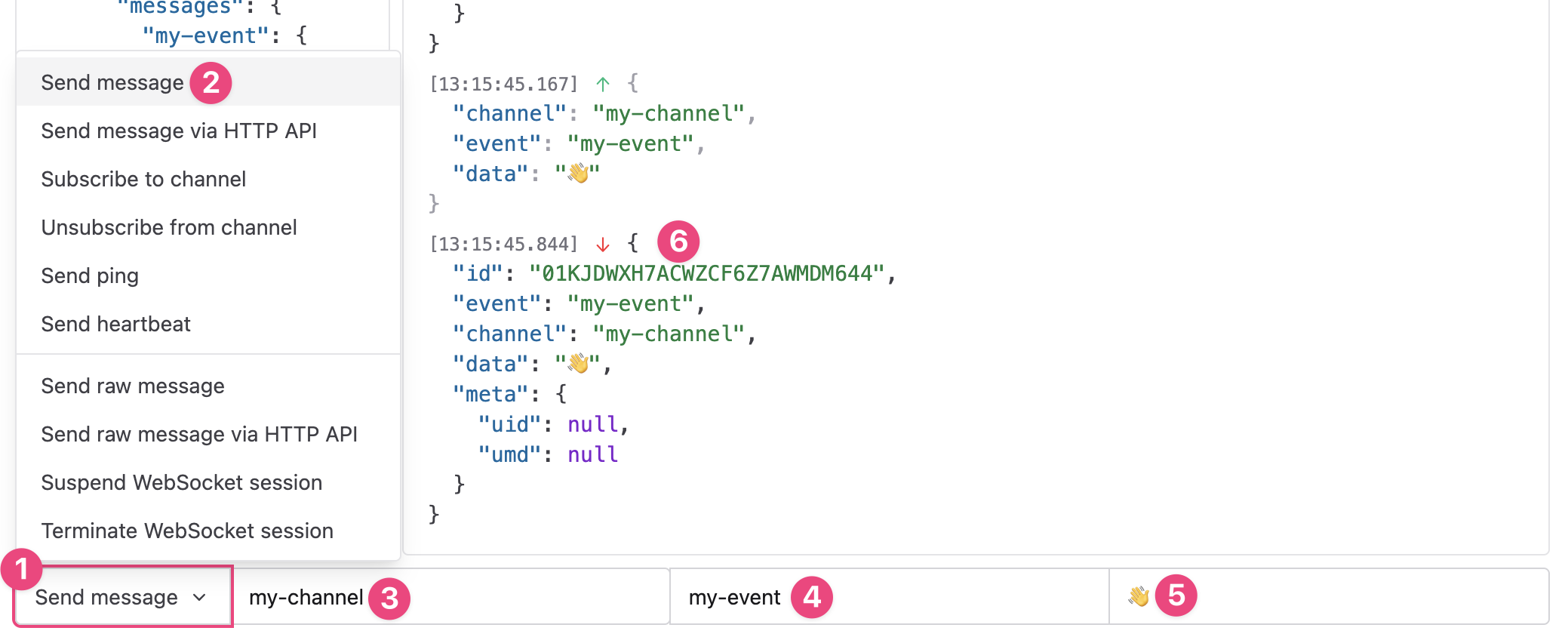

Web console send message

Other actions​

You can also use the web console to unsubscribe from channels, send pings and heartbeats, test disconnect/reconnect, and test sending your own raw messages on the WebSocket. Use the dropdown menu at the bottom to select the action you need.
